• 16" x 7.0" lux styled steel wheels
• P225/75R16 on/off-road BSW tires
• Black easy-folding soft top w/Sunrider feature
• Full size spare tire
• Matching spare wheel
• Outside tire carrier
• Sunrider soft top feature
• Black front bumper
• Black rear bumper
• Accent color fender flares
• Body color grille
• Halogen headlamps
• Fog lamps
• Tinted windshield glass
• Front door tinted glass
• Fold-away manual mirrors
• Variable intermittent windshield wipers

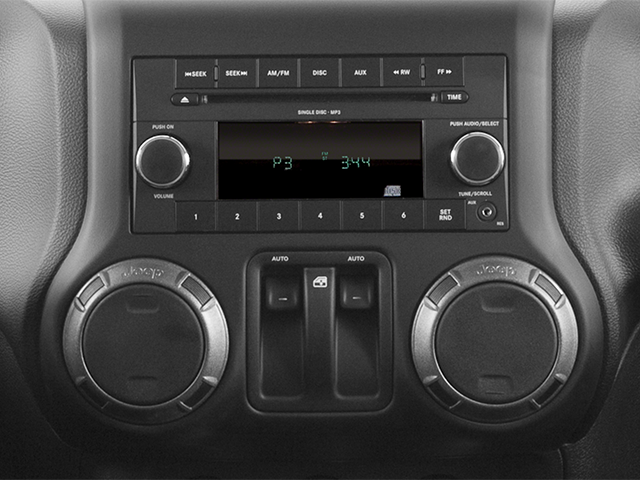

• Uconnect 130 -inc: AM/FM stereo, CD/MP3 player
• Audio input jack
• (6) speakers

• Heater only

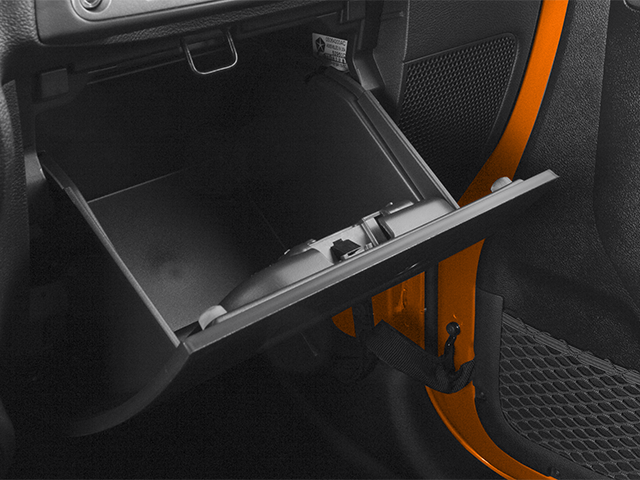

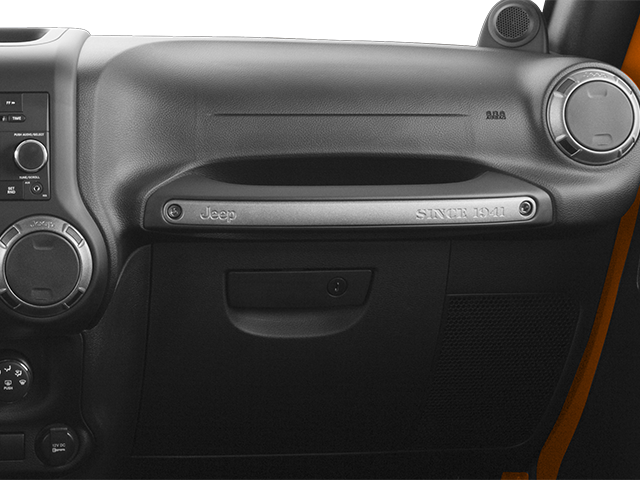

• Locking glove box
• Cloth seat trim

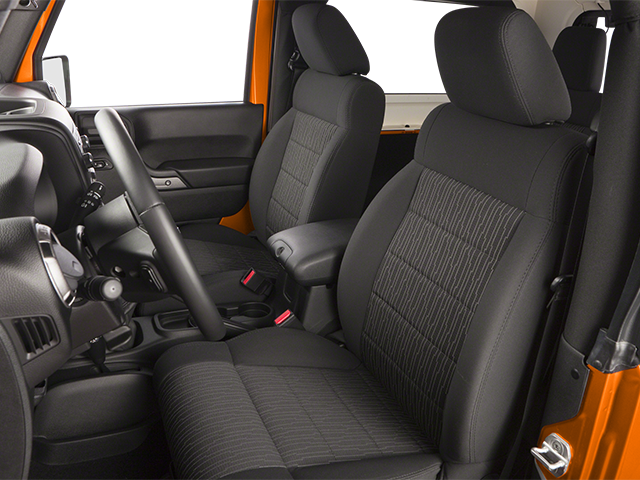

• Low-back front bucket seats -inc: adjustable head restraints
• Reclining front seats
• Driver height adjustment
• Easy-access passenger seat

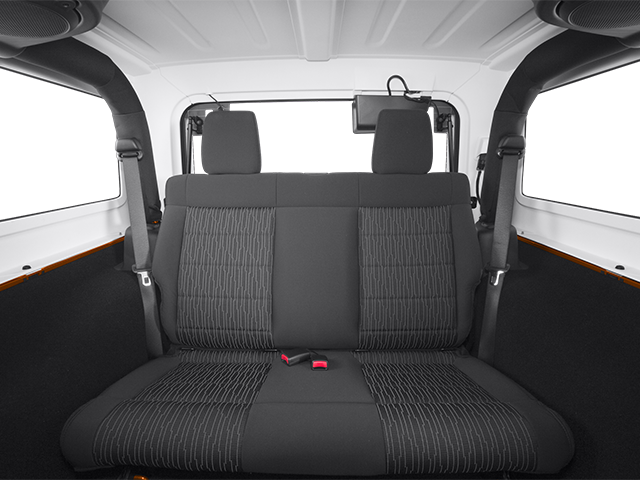

• Rear folding seat
• Rear seat outboard head restraints

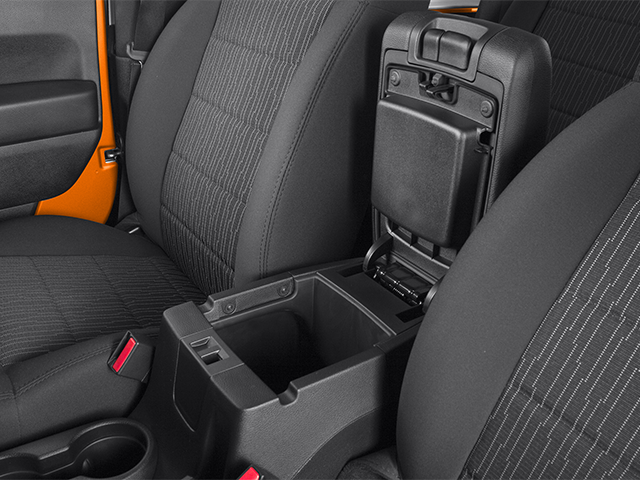

• Full length floor console
• Storage tray
• Front seat area carpet
• Rear seat/cargo area carpet
• Front floor mats
• Cargo compartment floor mat
• Tilt steering column

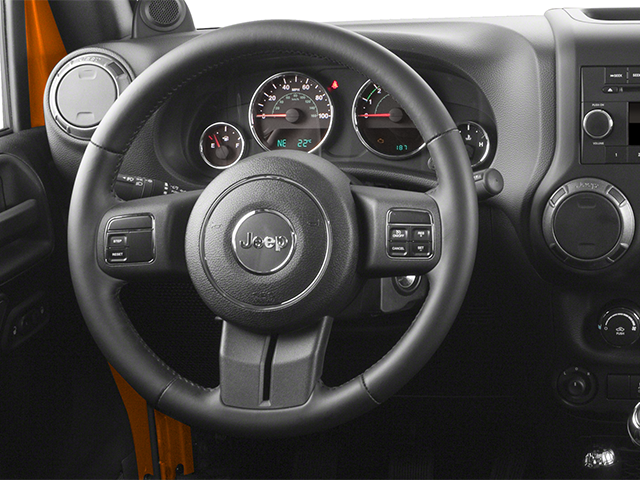

• Steering wheel mounted audio controls
• Premium instrument cluster w/tachometer
• Temp & compass gauge
• Front passenger seat belt alert
• Speed control
• Sentry Key theft deterrent system
• Aux 12V pwr outlet
• Sport bar w/full padding
• Sliding sun visors w/mirrors
• Front dome lamp w/on/off switch
• Front seatback map pockets
• Vinyl shift knob
• Cargo compartment covered storage
• Cargo tie down loops

• 4-wheel anti-lock brakes
• Electronic roll mitigation
• Electronic stability control
• Traction control
• Driver & front passenger advanced multi-stage frontal air bags -inc: occupant classification system (OCS)
• Tire pressure monitoring warning lamp

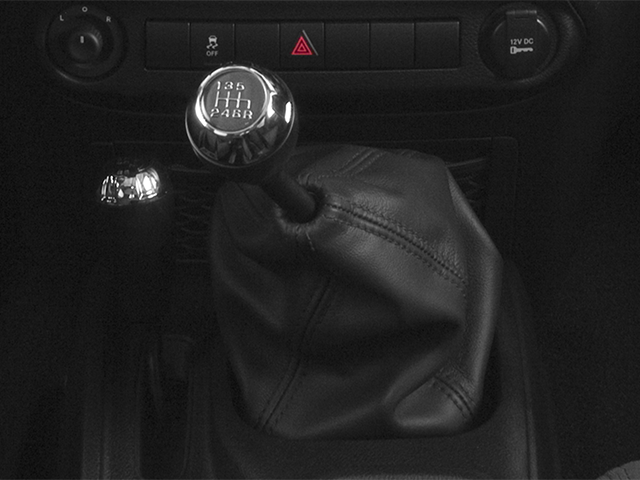

6-SPEED MANUAL TRANSMISSION

• (STD)

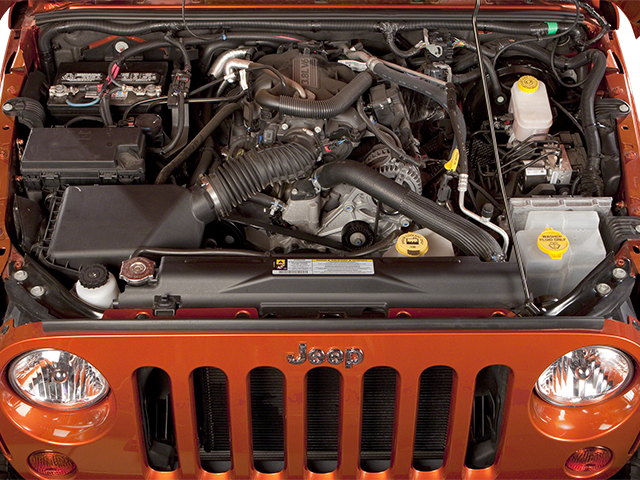

3.6L SMPI 24V VVT V6 ENGINE

• (STD)

• DEH
• ERB
• HAA

• Vehicle
• EPA Classification: Sport Utility Vehicle - 4WD
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Weight Information
• Base Curb Weight (lbs): 3760
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: Live Axle
• Suspension Type - Rear: Live Axle
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 11.9 x 1.1
• Tires
• Front Tire Order Code: TRM
• Rear Tire Order Code: TRM
• Spare Tire Order Code: TBB
• Front Tire Size: P225/75R16
• Rear Tire Size: P225/75R16
• Spare Tire Size: P225/75R16
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), Overall: 16.7
• Lock to Lock Turns (Steering): 3.5
• Turning Diameter - Curb to Curb (ft): 34.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18.6
• Exterior Dimensions
• Wheelbase (in): 95.4
• Length, Overall (in): 152.8
• Width, Max w/o mirrors (in): 73.7
• Height, Overall (in): 70.9
• Track Width, Front (in): 61.9
• Track Width, Rear (in): 61.9
• Min Ground Clearance (in): 8.8
• Rear Door Opening Height (in): 37.1
• Rear Door Opening Width (in): 58.7
• Liftover Height (in): 27.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 44.7
• Cargo Box (Area) Height (in): 37.1
• Cargo Volume to Seat 1 (ft³): 55.0
• Cargo Volume to Seat 2 (ft³): 12.8
• Interior Dimensions
• Passenger Capacity: 4
• Passenger Volume (ft³): 88.4
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 55.8
• Front Hip Room (in): 55.6
• Second Head Room (in): 40.3
• Second Leg Room (in): 35.6
• Second Shoulder Room (in): 61.6
• Second Hip Room (in): 44.7
• Summary
• Vehicle Name: Jeep Wrangler
• Body Style: Sport Utility Vehicle
• Emissions
• EPA Greenhouse Gas Score: 1 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.2
